Best Optical Rotary Joints for High-Speed Data Transfer

2026-07-13

In an era where every millisecond counts, high-speed data transfer is the backbone of innovation—from autonomous vehicles to advanced medical imaging. Optical rotary joints are the unsung heroes enabling seamless, uninterrupted communication across rotating interfaces, but not all are created equal. As demand surges for faster, more reliable transmission, choosing the right solution can make or break a project. That’s where MOFLON stands out, redefining what’s possible with cutting-edge designs that push the boundaries of speed and precision. Here’s what you need to know before making your next move.

Speed Unleashed: Meeting the Demands of Multi-Gigabit Transmission

The insatiable appetite for bandwidth in modern networks has pushed the boundaries of conventional connectivity, making multi-gigabit transmission not just a luxury but a necessity. From real-time 8K video streaming to immersive virtual reality environments, data flows are swelling at an unprecedented rate. The very fabric of our digital lives—remote work, cloud computing, and the Internet of Things—depends on a backbone capable of delivering blistering speeds without hesitation. The demand is clear: infrastructure must evolve to handle surges that would have been unthinkable a decade ago.

Meeting these demands requires more than just incremental upgrades; it calls for a fundamental rethinking of how data is moved. Technologies like fiber optic advancements and sophisticated signal modulation are stepping up to the plate, turning raw speed into reliable, low-latency performance. The real challenge lies in sustaining multi-gigabit rates across complex network topologies, where every hop and every device can become a bottleneck. By leveraging adaptive equalization and forward error correction, engineers are smoothing out the rough edges, ensuring that bits flow as swiftly as possible, even under heavy load.

What truly sets apart a multi-gigabit-ready system is its ability to remain responsive when every device vies for attention. It’s not enough to simply boast peak throughput; consistency under pressure is the mark of a robust network. As more applications demand synchronous, high-volume data exchange, the architecture must anticipate congestion and deftly route around it. Only then can the full potential of untethered speed be realized—unleashing the kind of seamless connectivity that turns bandwidth-hungry applications from a pipe dream into everyday reality.

Precision in Motion: Balancing Rotation with Signal Integrity

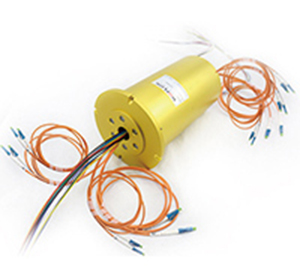

best Optical Rotary Joint

Keeping signals clean while parts are spinning at thousands of RPM isn't just about shielding—it's a mechanical ballet where every micron of contact bounce becomes a data glitch. We've seen how traditional slip rings treat rotation and transmission as two separate challenges, but the moment you try to push gigabit-speed signals through a rotating interface, even a millisecond of impedance mismatch can flip a bit and corrupt an entire packet. The real art lies in treating the rotary joint as part of the transmission line, not an afterthought.

Most engineers focus on gold-on-gold contacts or fiber optic rotary joints, but the subtlety is often in the bearing assembly itself. If the bearing has even a hint of axial play, the resulting micro-movements create phase noise that conventional eye diagrams won't easily catch. That's why our approach ties contact force dynamics directly to the signal's modulation scheme—adjusting preload not just for wear life, but to match the coherence requirements of the protocol running through the channel.

When you're dealing with sensitive analog signals alongside high-speed digital, the ground path through the rotating structure becomes the hidden storyteller. A seemingly solid chassis can develop ground loops that rotate with the shaft, modulating the reference plane at rotational frequency. Solving this meant rethinking the return path altogether—using distributed capacitance in the rotary joint to create a uniform impedance environment, effectively making the rotation transparent to the signal. It's the difference between a system that works on a lab bench and one that holds its BER floor while bolted to a vibrating engine test stand.

Tiny Titans: Compact Designs for Space-Constrained High-Speed Systems

When every millimeter counts, the art of shrinking high-speed circuitry becomes a tightrope walk between signal integrity and physical reality. The challenge isn't just fitting components onto a board—it's preserving rise times, managing crosstalk, and dissipating heat in volumes that would make a traditional designer wince. Small doesn't have to mean slow, but it does demand an obsessive attention to stackup geometries, via stitching, and the unglamorous side of return path design.

In dense environments like drones, wearables, or edge-computing nodes, designers often turn to flex-rigid hybrids and embedded component technology to buy back precious real estate. High-speed differential pairs snake through layers separated by tissue-thin dielectrics, while blind microvias connect signals without hogging surface area. Power integrity is the quiet monster here: decoupling capacitors shrink in size, so their placement becomes almost surgical, and the PDN impedance curve needs to stay flat well into the gigahertz range. Simulation isn't optional—it's the only way to spot a resonance that might hide between planes until a prototype is screaming.

The payoff is quietly transformative. A well-executed compact design doesn't just fit; it often outperforms its larger ancestors by shortening critical paths and reducing loop inductance. The trick is knowing which rules to bend and which ones to guard fiercely. Skew budgets tighten, terminations migrate onto silicon, and the whole board becomes a tuned structure rather than a passive canvas. When it's done right, the result feels almost invisible—a tiny slab of copper and composite that moves data at blistering speeds without a hint of compromise.

From Radar to Robotics: Where Fast Data Meets Continuous Rotation

The leap from stationary radar systems to mobile robotics demands a fundamental shift in how we process streams of data. Traditional radar units may sit fixed, scanning the skies or tracking weather patterns in neat, predictable sweeps. But when the sensor itself is bolted onto a robot that’s constantly pivoting, tilting, and rolling, every rotation adds a layer of complexity. The data doesn’t just arrive fast—it arrives twisted, overlapping with previous readings and needing instant reconciliation. This isn’t just about high bandwidth; it’s about the sensor’s own motion weaving into the raw feed, requiring a tight fusion of pose estimation and signal interpretation.

Consider a robotic arm with a radar on its wrist, inspecting a wind turbine blade. As the arm sweeps the sensor in a continuous arc, each pulse illuminates a slightly different slice of the surface. That raw echo returns not just with distance and reflectivity, but with an imprint of the arm’s own angular velocity. The processing pipeline has to ingest odometry, joint encoders, and perhaps an IMU stream at the exact same moment, otherwise the resulting point cloud blurs into useless static. It’s a real-time marriage of physics and computation—where a 10-millisecond lag in rotation data might translate into a centimeter-level error on the far side of the inspection.

This convergence is pushing radar beyond its classic role as a surveillance tool and into the realm of fine manipulation and agile navigation. In autonomous mobile robots, continuous rotation isn’t just a challenge—it’s also an opportunity. A spinning radar can build up a 360-degree view faster than a nodding unit, but only if the system treats every scan as part of a kinematic chain. When fast data meets continuous rotation, the outcome isn’t just more points per second; it’s a richer, motion-aware model of the world that lets robots react with the same fluidity as the hardware they’re mounted on.

Material Matters: How Construction Shapes High-Frequency Performance

In high-frequency circuits, the physical makeup of a PCB substrate is not just a passive backdrop—it actively governs signal behavior. Materials with tightly controlled dielectric constants and low dissipation factors become essential as frequencies climb, because even minor variations can distort phase and amplitude. For instance, the glass weave pattern in laminate reinforcements can introduce localized impedance shifts, a phenomenon that grows more disruptive with shorter wavelengths. Choosing a substrate with a uniform, low-loss resin system helps maintain signal fidelity, while also minimizing unintended radiation that might couple into neighboring traces.

Beyond bulk properties, construction details like copper surface roughness and adhesion treatments quietly dictate skin-effect losses. At gigahertz speeds, current concentrates at the conductor surface, and any irregularity effectively lengthens the electron path, raising insertion loss. Some manufacturers counteract this with rolled copper or specialized smoothing processes, but the trade-offs involve peel strength and thermal reliability. The interaction between dielectric layers and conductor profiles often goes unappreciated until a design fails to meet eye diagram or bit-error-rate targets, proving that material choices are not just about datasheet numbers but about the synergy between fabrication and electrical performance.

Thermal and mechanical factors also weave into the high-frequency narrative. A material’s coefficient of thermal expansion can warp a board under temperature cycling, subtly altering trace geometry and, therefore, impedance. Similarly, moisture absorption in hygroscopic resins can shift the effective dielectric constant over time, causing frequency drift in sensitive oscillators or filters. Designers who treat the PCB stackup as a holistic component—rather than a commodity—often discover that investing in advanced laminates and meticulous construction yields a circuit that not only meets spec on paper but holds its character across real-world environmental stress.

Choosing Your Link: Key Factors for Sustained High-Speed Connectivity

A stable, high-speed connection rarely happens by accident — it’s shaped by a handful of deliberate choices. The physical medium your data travels through sets the ceiling for both latency and throughput, which is why fiber optics tend to outperform copper or wireless alternatives in demanding environments. Yet raw bandwidth alone doesn’t guarantee consistency; the quality of termination points, the grade of cabling, and even the way cables are routed away from sources of interference can silently erode performance over time. When every millisecond counts, these details compound into either a seamless experience or a nagging bottleneck.

Beyond the cable itself, the devices that modulate and interpret the signal play an equally decisive role. A high-end router paired with a subpar modem, for instance, will still choke under heavy loads if the modem can’t handle the line rate or maintain a clean signal under thermal stress. Similarly, the choice between a managed and unmanaged switch might seem trivial for a small setup, but in an environment with bursty traffic patterns, features like Quality of Service prioritization and buffer management become the difference between smooth video calls and constant stuttering. The chain is only as strong as its weakest link, and overlooking any single component often leads to mysterious, hard-to-diagnose slowdowns.

Environmental factors also weave in and out of the equation, often underestimated until they’ve already caused trouble. Temperature swings can alter electrical resistance in copper lines, while humidity and dust degrade connector contacts over months of operation. In shared infrastructures like cable broadband, peak usage hours amplify congestion because the medium is effectively a shared bus — your neighbor’s heavy download can quietly reshape your own available bandwidth. Recognizing these influences and strategically choosing a dedicated link, hardening physical connections, and actively monitoring signal quality turns what could be a reactive troubleshooting nightmare into a largely predictable, resilient setup.

FAQ

What are optical rotary joints and why are they critical for high-speed data systems?

They allow continuous rotation while transmitting optical signals, keeping data streams intact without physical cable twisting — essential for applications like radar, wind turbines, and robotic arms that demand seamless high-bandwidth communication.

How do fiber optic rotary joints maintain signal integrity during rotation?

By using precision optics and ball-bearing assemblies that align fibers within microns, they preserve low insertion loss and back reflection even at high RPMs, ensuring no bit errors or latency spikes.

What key specifications should I check when selecting a rotary joint for gigabit Ethernet?

Look at insertion loss (under 2 dB typical), return loss (>45 dB), rotational speed rating, channel count, and whether it supports single-mode or multimode fiber — these directly impact data throughput and reliability.

Are single-channel or multi-channel optical rotary joints better for industrial automation?

Multi-channel joints shine in automation where you need to pass multiple protocols — like Ethernet, servo feedback, and video — through one rotating interface without interference, but single-channel units are lighter and cheaper for point-to-point links.

What makes a rotary joint suitable for harsh environments like offshore or aerospace?

Hermetic sealing, wide temperature tolerance (-40°C to +85°C), shock resistance, and materials like stainless steel or titanium — some even incorporate pressure compensation for deep-sea use, ensuring zero downtime in critical operations.

Can these joints handle both data and power simultaneously?

Yes, many advanced models integrate electrical slip rings alongside optical channels, allowing hybrid transmission — perfect for pan-tilt cameras or medical scanners where you need high-speed video and motor power through a single compact unit.

How do I avoid common pitfalls when installing an optical rotary joint in a 5G antenna system?

Ensure proper fiber strain relief to prevent micro-bends, align the rotational axis precisely with the joint’s center, and use cleaning kits before mating connectors — contamination is the top cause of signal degradation in field deployments.

What trends are shaping the next generation of rotary joints for data centers and beyond?

We’re seeing hollow-shaft designs for cable management, integrated multiplexing to push multi-terabit speeds, and even contactless optical transmission methods that eliminate wear altogether — driving longer service life and lower maintenance.

Conclusion

Modern high-speed systems demand more than just raw bandwidth—they require optical rotary joints that can maintain signal integrity through relentless rotation. Whether shuttling multi-gigabit data across radar platforms or enabling real-time vision in surgical robots, these components have evolved to eliminate the bottlenecks once imposed by mechanical slip rings. The trick lies in precision engineering that balances micro-optics alignment with dynamic motion, ensuring that even at peak rotational speeds, insertion loss and back-reflection stay negligible. It's not just about spinning; it's about sustaining clean, error-free transmission when every pulse counts.

Physical constraints often dictate the solution, which is why compact, rugged designs are stealing the spotlight. High-frequency performance hinges on material selection—specialty glasses, advanced ceramics, and dielectric coatings that minimize dispersion and thermal drift. From avionics to deep-sea ROVs, these rotary joints prove that size doesn't have to limit throughput. When selecting a link for sustained high-speed connectivity, practical considerations like channel count, environmental sealing, and long-term reliability often outweigh headline data-rate specs. The best designs quietly disappear into the system, delivering seamless optical rotation without ever demanding attention.
