How does a thread gauge work?

A thread gauge is a tool used to measure the pitch or lead of a screw thread. It helps identify the size and type of thread (like metric or imperial), ensuring the correct threading standard is used during manufacturing or repair.

Here’s how it works:

1. Types of Thread Gauges

There are two main types:

- Thread pitch gauge (or screw pitch gauge):

 Used to measure the pitch of a thread — that is, the distance between threads.

- Thread plug and ring gauges:

 Used to check the accuracy and tolerance of internal (female) or external (male) threads. These are often used in quality control.

2. How to Use a Thread Pitch Gauge

This is the more common tool for general use:

1. Select a blade on the gauge that seems to match the thread.

2. Place the blade’s teeth into the threads of the screw or bolt.

3. If the teeth fit perfectly into the thread grooves with no gap or play, you’ve found the correct pitch.

4. The blade is usually marked with the pitch value (like 1.0 mm or 24 TPI, meaning threads per inch).

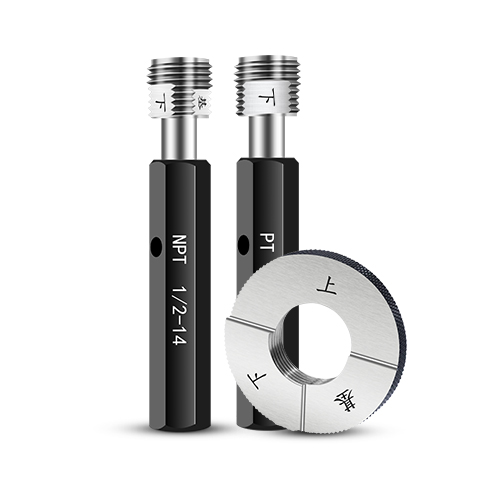

3. How to Use a Thread Plug or Ring Gauge

These are precision tools for verifying thread quality:

- Thread plug gauge: Inserted into a nut or threaded hole. It has a GO and NO-GO side.

 - GO end should easily screw in.

 - NO-GO end should not screw in — if it does, the thread is too loose.

- Thread ring gauge: Screwed onto a bolt or threaded shaft.

 - Works the same way — GO should fit, NO-GO should not.

4. Applications

- Manufacturing (machining, QC)

- Repair shops

- Engineering and design

- Fastener identification

Summary

A thread gauge helps you determine or verify the pitch, size, and standard of a threaded part. It ensures compatibility between components and prevents costly mistakes during assembly or production.
