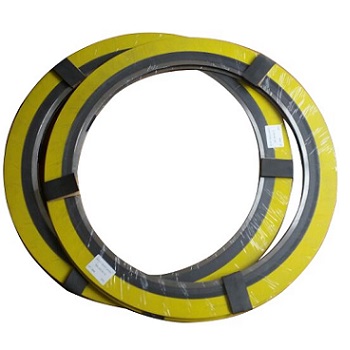

How to Select the Right Spiral Wound Gasket for Your Application

Choosing the correct spiral wound gasket can make a significant difference in the performance and longevity of your equipment. With various materials, configurations, and applications available, understanding the factors to consider is crucial.

Factors to Consider When Selecting a Spiral Wound Gasket

1. Operating Conditions

- Pressure and Temperature: Ensure the gasket can withstand the maximum operating conditions of your system.

- Media Compatibility: Choose materials resistant to the chemicals or gases being sealed.

2. Material Selection

- Metallic Strip:

 - Stainless Steel: For general use and corrosion resistance.

 - Inconel or Monel: For high-temperature or corrosive environments.

- Filler Material:

 - Graphite: Excellent for high temperatures and pressure.

 - PTFE: Best for chemically aggressive environments.

3. Gasket Style

Spiral wound gaskets come in different styles for various applications:

- Style R: Basic spiral wound gasket without inner or outer rings.

- Style CGI: Includes inner and outer rings for enhanced sealing and alignment.

- Style RIR: Features an inner ring to prevent inward buckling under extreme conditions.

4. Compliance with Standards

Ensure the gasket complies with industry standards like ASME, API, or EN to guarantee compatibility and performance.

Installation Best Practices

1. Inspect the Flanges: Ensure the flange surface is clean and free of damage.

2. Proper Alignment: Align the gasket correctly to avoid uneven sealing.

3. Tightening Sequence: Use a star pattern when tightening bolts to distribute load evenly.

Applications Across Industries

- Petrochemical: Withstanding harsh chemical exposure and high pressures.

- Pharmaceutical: Ensuring contamination-free sealing.

- Food and Beverage: Compliance with hygiene and safety standards.

Conclusion

Selecting the right spiral wound gasket requires careful evaluation of your system's needs and operating conditions. By considering material compatibility, pressure and temperature ratings, and industry standards, you can ensure a secure and reliable seal for your application.
