Understanding AC Industrial Fuses: Protection for High-Voltage Systems

In industrial environments, where electrical systems and machinery often operate at high voltages and carry substantial power loads, the risk of electrical faults or overloads increases significantly. This is where AC industrial fuses come in—vital components designed to protect equipment, circuits, and personnel from potentially dangerous electrical issues. In this blog, we’ll cover what AC industrial fuses are, why they’re essential in industrial applications, how they work, and tips on selecting the right fuse for specific setups.

What is an AC Industrial Fuse?

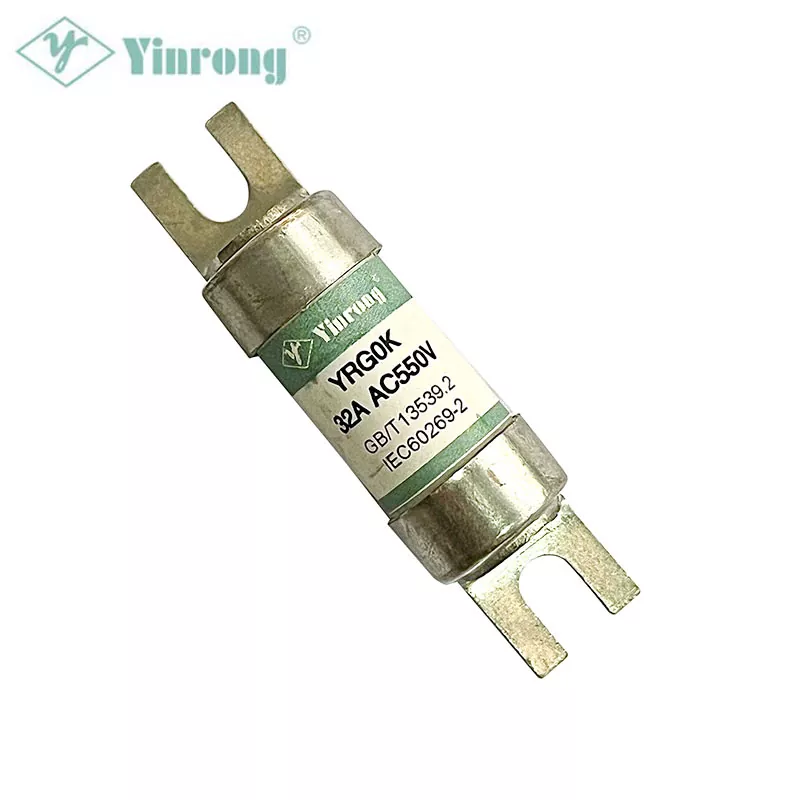

An AC industrial fuse is a device that protects electrical circuits and equipment by breaking the connection if an overcurrent or short circuit occurs. These fuses are specifically rated to handle alternating current (AC) and are typically designed to operate under high power loads, making them ideal for industrial settings. AC industrial fuses are found in applications such as motors, transformers, HVAC systems, switchgear, and other heavy-duty machinery where sudden surges or faults could lead to serious damage or downtime.

Unlike standard household fuses, industrial fuses are built for higher voltage and current ratings, as well as for extended durability in demanding environments. They come in a variety of shapes, sizes, and classes, each with specific characteristics for particular applications.

Why Are AC Industrial Fuses Important?

1. Protection Against Overcurrent and Short Circuits

  - In industrial settings, high currents can pose a risk if they flow through a circuit unchecked. AC industrial fuses detect excess current levels and immediately disconnect the circuit, preventing potential damage to expensive equipment or electrical fires.

2. Ensuring Operational Continuity

  - Unplanned downtime due to electrical faults can be costly in industrial operations. Fuses prevent severe damage to machinery, allowing for quick replacements and minimal disruption.

3. Personnel Safety

  - High-power equipment faults can create hazardous situations for workers. Proper fuse protection reduces risks to personnel, contributing to a safer work environment.

4. Compliance with Safety Standards

  - Industrial installations are subject to stringent safety regulations, such as those from the National Electrical Code (NEC) or other international standards. Using the correct fuses ensures compliance, reducing liability risks and helping avoid penalties.

How Does an AC Industrial Fuse Work?

An AC industrial fuse contains a metal conductor, often a thin wire or strip, which melts when exposed to excessive current. Here’s a basic breakdown of how it works:

1. Current Flow

  - During normal operation, current flows through the fuse element without any interruptions.

2. Overcurrent Detection

  - When the current exceeds the fuse’s rated level, the heat generated within the fuse melts the conductor, breaking the circuit and stopping the flow of electricity.

3. Arc Suppression

  - In high-voltage fuses, special materials are often used to extinguish any arc that forms when the conductor melts. Arc suppression is essential in AC circuits, where voltage oscillates and can re-strike the arc if not properly managed.

By quickly breaking the circuit, the fuse prevents the excess current from damaging the circuit or connected equipment.

Types of AC Industrial Fuses

Industrial fuses come in various types and classes, each designed for specific applications. Here are some common types:

1. Class H Fuses

  - Known as non-current limiting, Class H fuses are typically rated for up to 250 or 600 volts and offer basic overcurrent protection. However, they’re not as fast-acting as other types and are best suited for general-purpose applications.

2. Class R Fuses

  - With better current-limiting capabilities, Class R fuses are more robust and offer faster response times, often making them suitable for motor protection and other demanding applications.

3. Class J Fuses

  - These fuses are compact, highly current-limiting, and offer high interrupting ratings, making them ideal for use in distribution circuits and motor controllers.

4. Class CC Fuses

  - Compact yet powerful, Class CC fuses are often used in lighting circuits, transformers, and other high-inrush current applications where a fast response is critical.

5. Time-Delay Fuses

  - Time-delay fuses, also known as "slow blow" fuses, allow short bursts of overcurrent—such as the surge that occurs when a motor starts—without tripping. These fuses are ideal for equipment with high starting currents, like motors or compressors.

6. Fast-Acting Fuses

  - Designed to react quickly, these fuses provide immediate protection and are ideal for sensitive electronic equipment that can be easily damaged by even brief surges.

Key Considerations for Choosing an AC Industrial Fuse

Selecting the right fuse requires careful attention to several factors to ensure optimal performance and safety. Here are the primary considerations:

1. Current and Voltage Ratings

  - The fuse’s current rating should match or slightly exceed the circuit’s normal operating current. Voltage rating should also be compatible with the maximum system voltage to prevent fuse failure during operation.

2. Interrupting Rating (IR)

  - This rating specifies the maximum fault current the fuse can safely interrupt. In industrial applications, the interrupting rating should be high enough to protect against the potential fault currents in the system.

3. Response Time

  - Different fuses have varying response times, from fast-acting to time-delay. Select a response time based on the equipment being protected. Motors and compressors, for instance, may benefit from time-delay fuses, while fast-acting fuses are suitable for sensitive electronics.

4. Environmental Conditions

  - Consider temperature, humidity, and the presence of corrosive or explosive materials. High-temperature environments may require special fuses, while outdoor applications benefit from fuses with robust weatherproofing.

5. Fuse Type Compatibility

  - Ensure that the fuse type aligns with industry standards and the specific requirements of the equipment. For example, motor circuits may require fuses with specific time-delay characteristics to prevent unnecessary tripping.

Installation Tips for AC Industrial Fuses

1. Correct Positioning

  - Ensure fuses are installed in fuse holders or boxes that provide good contact and are secure. Loose connections can cause overheating and reduce the fuse’s effectiveness.

2. Use the Right Tools

  - Industrial fuses should be installed with proper tools to ensure they’re handled safely. Avoid touching fuse terminals directly with hands, especially in high-voltage environments.

3. Regular Maintenance and Inspection

  - Periodically inspect fuses for wear, corrosion, or signs of damage. Replace any blown or compromised fuses to maintain system protection and performance.

4. Labeling and Documentation

  - Label fuses clearly within the system for quick identification. Documentation of fuse ratings and locations also aids in troubleshooting and maintenance.

Benefits of High-Quality AC Industrial Fuses

- Enhanced Equipment Protection: Protects expensive industrial equipment from overcurrent damage, reducing repair costs.

- Increased Safety: Reduces the risk of electrical fires or accidents by disconnecting circuits during faults.

- Compliance and Reliability: High-quality fuses meet safety standards, ensuring compliance and long-term reliability.

- Minimized Downtime: Quick and effective protection reduces the impact of electrical faults on production, ensuring continuous operation.

Final Thoughts

AC industrial fuses are a crucial part of any high-voltage system, providing reliable overcurrent protection and enhancing workplace safety. Understanding the unique demands of industrial settings and selecting the right fuse for each application can save time, money, and prevent potentially dangerous situations. Investing in quality fuses that match the requirements of your equipment will ensure optimal performance, compliance with safety standards, and peace of mind for operators and technicians alike.

In today’s fast-paced industrial world, the right AC industrial fuse is more than just a component—it’s an investment in safety, reliability, and efficiency.
