Understanding Current Transformers: A Key Component in Electrical Measurement

In the world of electrical engineering, accurate measurement and monitoring of current are crucial for the safe and efficient operation of power systems. One of the most important devices used for this purpose is the current transformer (CT). This blog will explore what current transformers are, how they work, and why they are essential in various electrical applications.

What is a Current Transformer?

A current transformer is an instrument transformer designed to measure alternating current (AC) by reducing high current levels to a lower, manageable value that can be safely measured by standard instruments. The reduced current is proportional to the actual current flowing in the circuit, allowing for accurate monitoring and measurement.

CTs are commonly used in power systems for metering and protection purposes. They are essential components in various applications, including power generation, transmission, distribution, and industrial processes.

How Does a Current Transformer Work?

A current transformer operates on the principle of electromagnetic induction. It consists of a primary winding, a magnetic core, and a secondary winding. Here’s how it works:

1. Primary Winding: The primary winding of a CT is connected in series with the load circuit. The current flowing through the primary winding generates a magnetic field around the core.

2. Magnetic Core: The magnetic core concentrates the magnetic field produced by the primary current. The strength of the magnetic field is proportional to the current flowing through the primary winding.

3. Secondary Winding: The secondary winding is wound around the magnetic core and is designed to produce a much lower current, typically in the range of 1A or 5A. The current in the secondary winding is proportional to the current in the primary winding, allowing for safe and accurate measurement by connected instruments such as ammeters, relays, or energy meters.

The ratio of the primary current to the secondary current is known as the transformation ratio or turns ratio. For example, a CT with a ratio of 100:5 will produce a secondary current of 5A when the primary current is 100A.

Types of Current Transformers

Current transformers come in various designs, each suited for specific applications. Some common types include:

1. Wound-Type CT: In this type, the primary winding is physically wound around the core. Wound-type CTs are used for low to medium current applications and offer high accuracy.

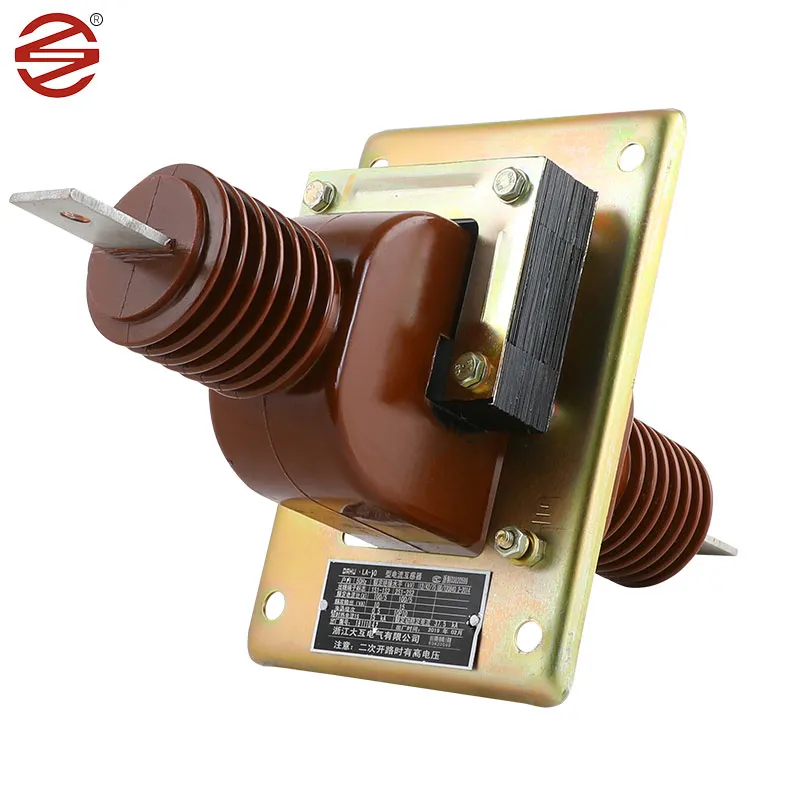

2. Bar-Type CT: The primary winding in a bar-type CT is a straight conductor or busbar that passes through the core. These CTs are used in high-current applications and are often found in power distribution systems.

3. Toroidal CT: Toroidal CTs have a ring-shaped core with the primary conductor passing through the center. They are commonly used for differential protection and ground fault detection.

4. Split-Core CT: Split-core CTs can be opened and installed around an existing conductor without disconnecting it. They are convenient for retrofitting in existing systems.

Applications of Current Transformers

Current transformers play a vital role in various electrical applications:

1. Metering: CTs are used in conjunction with energy meters to measure the current flowing in a circuit. They provide accurate current measurement, which is essential for billing and energy management in residential, commercial, and industrial settings.

2. Protection: In power systems, CTs are used to protect equipment from overcurrent conditions. They supply current to protective relays, which trip circuit breakers when abnormal conditions are detected, preventing damage to the system.

3. Monitoring: CTs are used to monitor current levels in power systems, enabling operators to assess the health of the system and take corrective actions if necessary.

4. Ground Fault Detection: Toroidal CTs are commonly used for detecting ground faults in electrical systems. They provide the necessary current input to ground fault protection devices, ensuring the safety of the system.

Conclusion

Current transformers are indispensable components in electrical systems, providing accurate current measurement and protection. By stepping down high currents to manageable levels, CTs enable the safe and efficient operation of power systems. Whether used in metering, protection, or monitoring, current transformers are crucial for maintaining the reliability and safety of electrical networks.
