What Is a D-Sub Connector and Where Is It Used?

D-Sub connectors, also known as D-subminiature connectors, are a type of electrical connector that has been widely used in electronics since the 1950s. Recognizable by their D-shaped metal shell, these connectors were originally developed for computers but are now used in a broad range of industries.

So, what exactly is a D-Sub connector, and where might you encounter one today?

Understanding the Basics

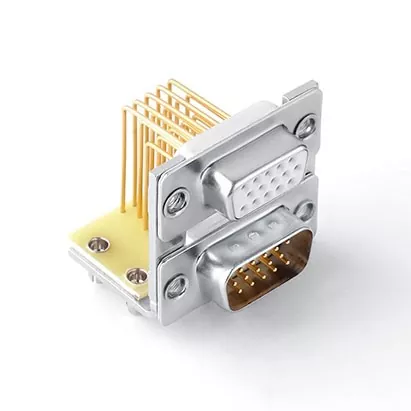

The term "D-Sub" refers to the connector’s shape. The metal shield looks like a capital "D", which helps ensure proper orientation when connecting. Inside the shell are rows of pins or sockets. The number of pins can vary, with the most common configurations being 9-pin (DE-9), 15-pin (DA-15), 25-pin (DB-25), and 37-pin (DC-37).

D-Sub connectors come in male and female versions, typically with the male side having pins and the female side having corresponding sockets.

Where Are D-Sub Connectors Used?

Despite being a decades-old technology, D-Sub connectors are still found in many applications due to their reliability and rugged construction:

Computers and Peripherals: Legacy ports like serial and parallel connections used D-Sub interfaces.

Industrial Equipment: Many control systems, sensors, and automation devices still rely on D-Sub connectors for robust signal transmission.

Military and Aerospace: Thanks to their durability, D-Subs are used in mission-critical environments where secure connections are vital.

Telecommunications: Network devices and control panels often use D-Sub connectors for data and signal routing.

Why Are D-Sub Connectors Still Popular?

Even with the rise of newer interfaces like USB and HDMI, D-Sub connectors continue to be used because they:

Provide secure, screw-lock connections

Withstand vibration and physical stress

Support a wide range of pin configurations

Work reliably in harsh environments

Final Thoughts

D-Sub connectors may be old technology, but they are far from obsolete. Their rugged design, versatility, and dependability make them a preferred choice in many industrial and professional applications. Whether you're working in automation, telecommunications, or legacy computer systems, D-Sub connectors are a reliable solution that stands the test of time.
