What is the main function of a directional control valve?

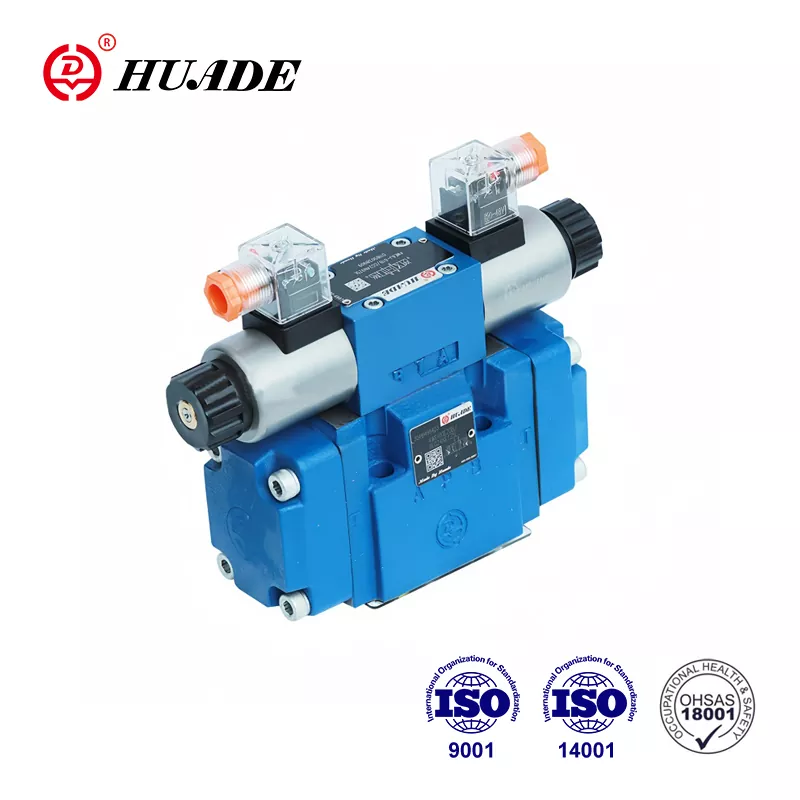

The primary function of a directional control valve (DCV) is to direct and regulate the flow of fluid (such as hydraulic oil or air) within a hydraulic or pneumatic system. It controls the path that the fluid takes, which in turn determines the movement and operation of various actuators, such as hydraulic cylinders or motors.

Here’s a breakdown of its key functions:

1. Control Fluid Direction: A directional control valve guides the flow of fluid to specific channels in the system. Depending on the valve position, it can direct the fluid to different paths, determining which actuator will operate and in which direction (extend or retract for a cylinder, rotate clockwise or counterclockwise for a motor).

2. Start and Stop Fluid Flow: The valve can allow or block fluid flow entirely, enabling or disabling specific operations within the system. This allows the operator to control when an actuator starts or stops working.

3. Flow Reversal: Many DCVs allow for reversing the flow direction, which can be used to change the direction of movement of an actuator. For example, it can reverse the flow to make a piston extend or retract in a hydraulic cylinder.

4. Control Multiple Actuators: A directional control valve can be designed with multiple ports and positions, allowing it to control more than one actuator. This adds flexibility and efficiency to complex systems where various movements or operations are required.

Conclusion

In summary, the main function of a directional control valve is to control the direction, start, stop, and sometimes the flow rate of hydraulic or pneumatic fluid, ensuring proper and efficient operation of actuators in industrial, construction, and automotive systems.
